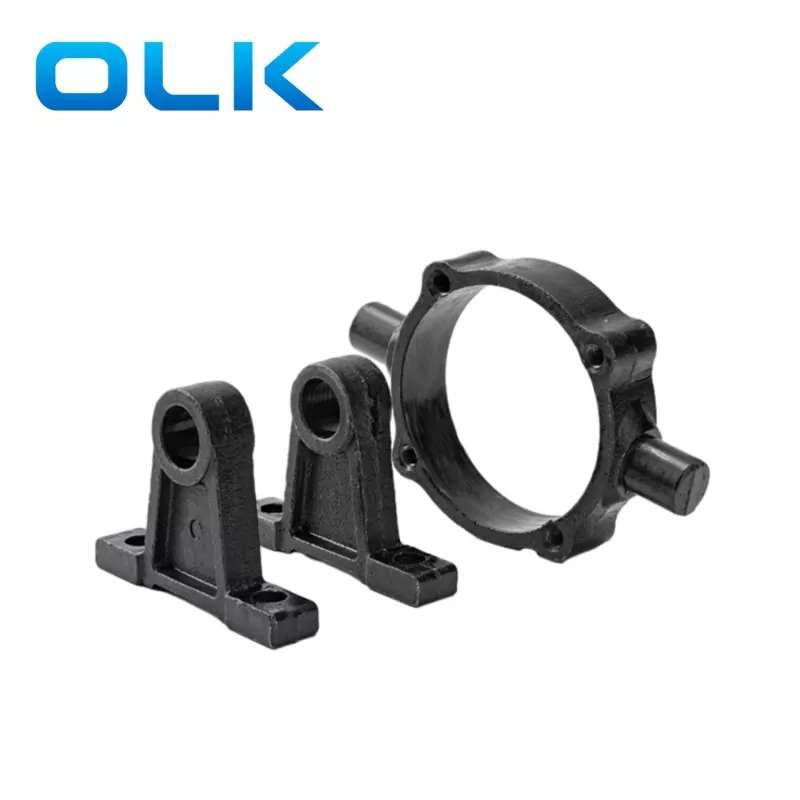

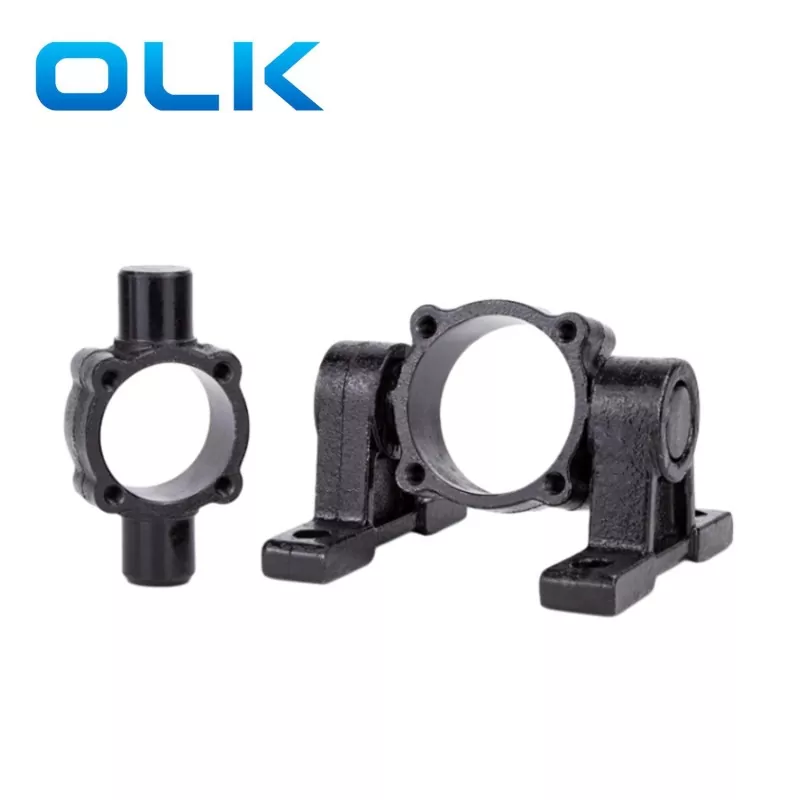

Compared to TC bracket, TC-M mounting bracket has two additional mounting bases, and the TC-M bracket structure is more robust, suitable for applications with high cylinder operating frequency or high driving force.
Both the TC and TC-M mounting bracket swing have 360 ° rotation characteristics. TC/TC-M can perform vertical rocker arm movements and adjust the degree of freedom of air cylinder movement, suit for work scenarios such as packaging equipment, sorting systems, assembly equipment, etc.
|

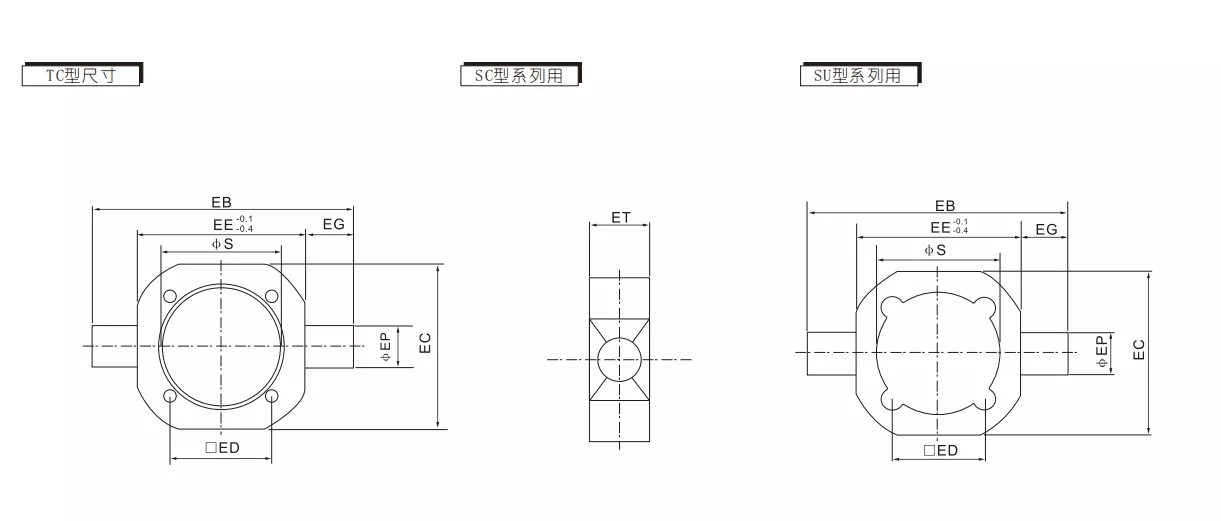

Code / Bore Diameter |
EB |
EC |
ED |
EE |
EG |
EP |
ET |
S |
|
40 |
113 |
63 |
37 |
63 |
25 |
25 |
30 |
45.5 |
|
50 |
126 |
76 |
47 |
76 |
25 |
25 |
30 |
55.5 |
|
63 |
138 |
88 |
56 |
88 |
25 |
25 |
30 |
68.5 |
|
80 |
164 |
114 |
70 |
114 |
25 |
25 |
35 |
87.5 |
|
100 |
182 |
132 |
84 |
132 |
25 |
25 |
40 |
107.5 |
|
125 |
210 |
153 |
110 |
155 |
24 |
30 |
40 |
134 |
|
160 |
270 |
199 |
140 |
199 |
35.5 |
32 |
44 |
172 |
|
200 |
320 |
245 |
175 |
245 |
37 |
32 |
50 |
218 |
|

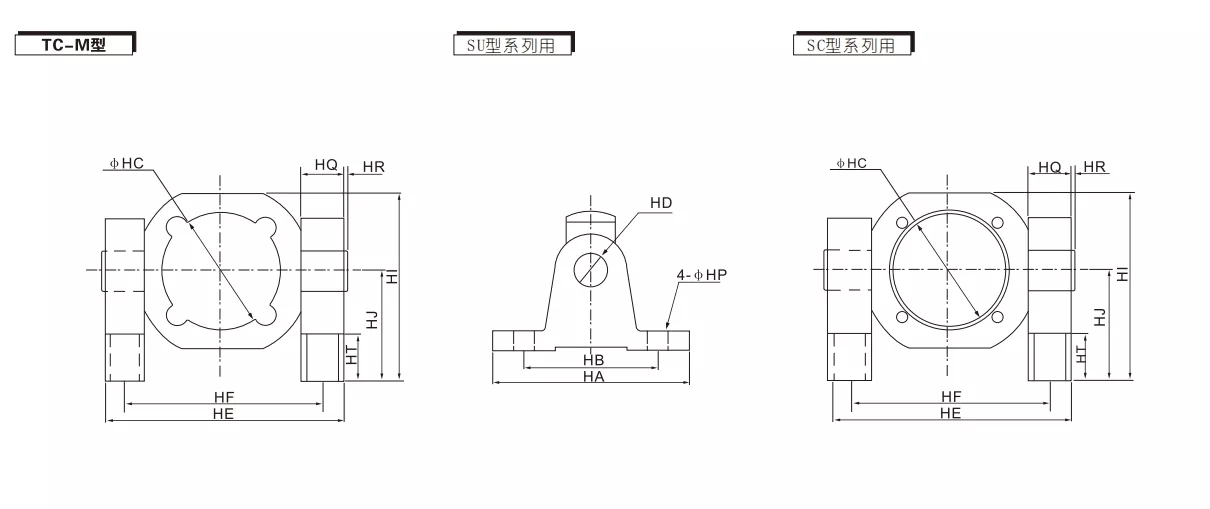

Code / Bore Diameter |
HA |
HB |
HC |
HD |
HE |
HF |
HI |
HJ |
HQ |
HR |
HT |
HP |
|
40 |
110 |
80 |
45.5 |
22 |
109 |
86 |
81.5 |
50 |
23 |
2 |
12 |
12 |
|
50 |
110 |
80 |
45.5 |
22 |
122 |
99 |
88 |
50 |
23 |
2 |
12 |
12 |
|
63 |
110 |
80 |
68.5 |
22 |
134 |
111 |
94 |
50 |
23 |
2 |
12 |
12 |
|
80 |
120 |
85 |
87.5 |
22 |
160 |
137 |
127 |
70 |
23 |
2 |
14 |
14 |
|
100 |
120 |
85 |
107.5 |
22 |
178 |
155 |
136 |
70 |
23 |
2 |
14 |
14 |
What is the difference between TC and TC-M installation brackets?
TC bracket: usually a standard installation bracket, suitable for general installation needs.
TC-M bracket: Designed as an improved installation bracket, it may be more suitable for specific installation environments or provide more stable support.
What are the materials for TC bracket?
OLK brand TC bracket’s material is iron.

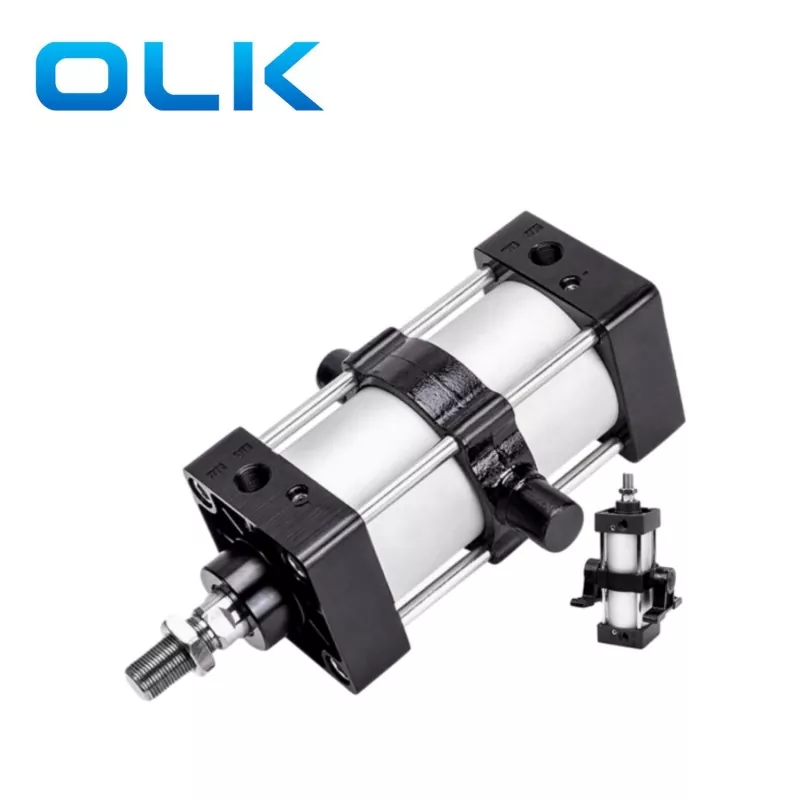

What cylinder is TC/TC-M bracket suit for ?
TC mounting bracket suit for SC pneumatic cylinder.
